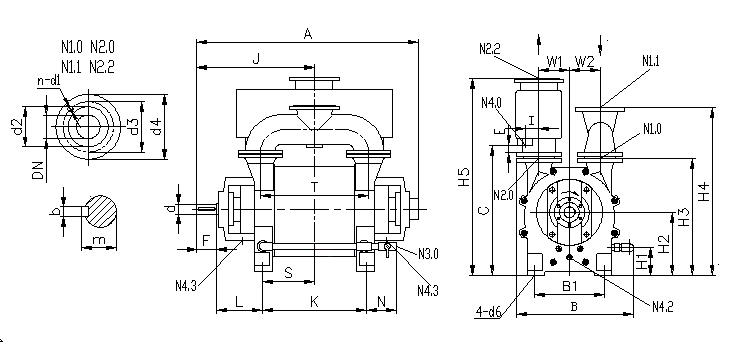

2BE1 202/203/252/253泵頭安裝尺寸
 |
| |
N1.0進氣端法蘭 N1.1連通管法蘭 N2.0排氣端法蘭
N2.2分離器法蘭 N3.0工作液接口 N4.0分離器排液口
N4.2沖洗、排液口 N4.3泄漏液排放口
|
代號 |
A |
B1 |
B |
b |
C |
d |
d6 |
E |
F |
H1 |
H2 |
H3 |
H4 |
H5 |
I |
2BE1 202 |
975 |
340 |
700 |
14 |
629 |
50 |
24 |
37 |
82 |
127 |
315 |
590 |
840 |
985 |
50 |
2BE1 203 |
1095 |
340 |
700 |
14 |
629 |
50 |
24 |
37 |
82 |
127 |
315 |
590 |
840 |
985 |
50 |
2BE1 252 |
1225 |
465 |
800 |
20 |
799 |
70 |
28 |
42 |
105 |
148 |
400 |
755 |
1030 |
1245 |
80 |
2BE1 253 |
1375 |
465 |
800 |
20 |
799 |
70 |
28 |
42 |
105 |
148 |
400 |
755 |
1030 |
1245 |
80 |
代號 |
J |
K |
L |
m |
N |
S |
T |
W1 |
W2 |
N3.0 |
N4.0 |
N4.2 |
N4.3 |
|
|
2BE1 202 |
507 |
395 |
227 |
53.5 |
175 |
198 |
427 |
155 |
155 |
G1" |
G3" |
G3/4" |
G3/4" |
|
|
2BE1 203 |
567 |
515 |
227 |
53.5 |
175 |
258 |
547 |
155 |
155 |
G1" |
G3" |
G3/4" |
G3/4" |
|
|
2BE1 252 |
630 |
525 |
263 |
74.5 |
200 |
263 |
570 |
215 |
215 |
G11/4" |
G3" |
G1" |
G3/4" |
|
|
2BE1 253 |
705 |
675 |
263 |
74.5 |
200 |
338 |
720 |
215 |
215 |
G11/4" |
G3" |
G1" |
G3/4" |
|
|
代號 |
DN |
d1 |
d2 |
d3 |
d4 |
n |
代號 |
DN |
d1 |
d2 |
d3 |
d4 |
n |
2BE1 202 |
N1.0
N2.0 |
100 |
18 |
158 |
180 |
220 |
8 |
2BE1 252 |
N1.0
N2.0 |
125 |
18 |
188 |
210 |
250 |
8 |
N1.1
N2.2 |
125 |
18 |
188 |
210 |
250 |
8 |
N1.1
N2.2 |
150 |
22 |
212 |
240 |
285 |
8 |
2BE1 203 |
N1.0
N2.0 |
100 |
18 |
158 |
180 |
220 |
8 |
2BE1 253 |
N1.0
N2.0 |
125 |
18 |
188 |
210 |
250 |
8 |
N1.1
N2.2 |
125 |
18 |
188 |
210 |
250 |
8 |
N1.1
N2.2 |
150 |
22 |
212 |
240 |
285 |
8 |
|
|
